When your vacuum system demands flawless performance, every component must meet extreme tolerances. Custom metal parts machining in China has become the global standard for cost-effective, high-quality vacuum chamber components. From flanges and feedthroughs to custom chambers and brackets, Chinese CNC workshops combine advanced equipment with skilled engineering to deliver parts that perform in high-vacuum and ultra-high-vacuum environments.

Why Choose China for Custom Vacuum Chamber Parts?

China’s machining industry offers several advantages for vacuum technology buyers:

    ◆  Cost efficiency without sacrificing material quality (stainless steel 304/316L, aluminum alloys, oxygen-free copper).

    ◆  Fast lead times with 24/7 production capabilities.

    ◆  ISO 9001:2015 and AS9100D certified facilities.

    ◆  Expertise in low-outgassing surface finishes and helium leak test preparation.

For an overview of quality standards, check iso-9001-quality-management.

Advanced Machining Capabilities for Vacuum Components

Precision machining for vacuum chambers requires:

    ◆  5‑axis CNC milling – for complex port geometries and angled flanges.

    ◆  CNC turning – for round parts like sealing rings, nuts, and custom adapters.

    ◆  EDM (wire & sinker) – for internal keyways and blind cavities.

    ◆  Welding & vacuum brazing – to assemble multi‑part chambers without virtual leaks.

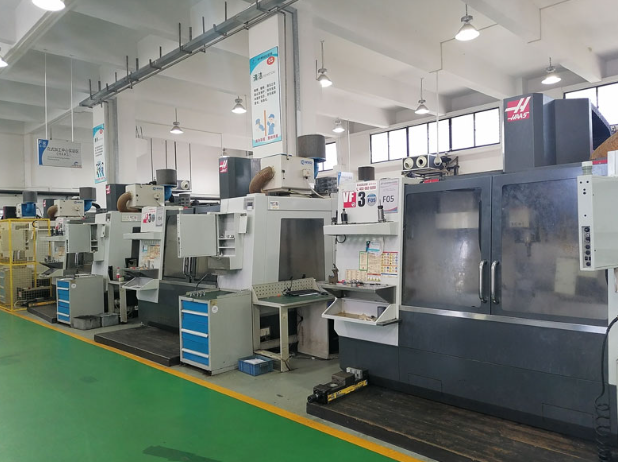

See a typical part setup in our shop:

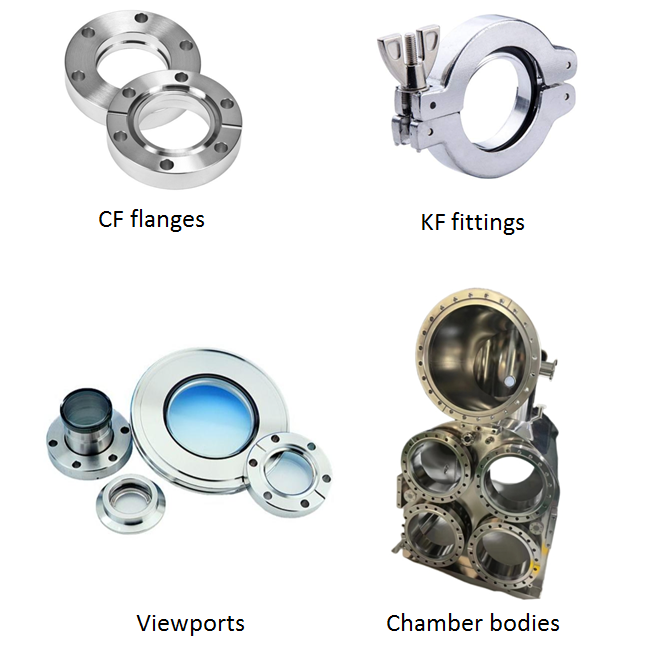

Key Vacuum Chamber Components We Machine

Our Chinese machining center specializes in:

    ◆  CF (ConFlat) flanges – knife-edge finish for reliable metal sealing.

    ◆  KF (quick-flange) fittings – grooved surfaces for elastomer seals.

    ◆  Viewports – precision frames for borosilicate or quartz windows.

    ◆  Chamber bodies – cylindrical, rectangular, or spherical, up to 1.5m diameter.

    ◆  Internal fixtures – heater blocks, sample stages, and radiation shields.

Every component is inspected with CMM and helium leak detector before shipment.

Material Selection and Surface Treatment

Vacuum compatibility depends on material choice and finish:

We also provide electropolishing (Ra < 0.4 µm) and ultrasonic cleaning in ISO 4 cleanrooms. Learn about our quality control process.

Quality Assurance for High-Vacuum Applications

All custom parts undergo:

    ◆  Dimensional inspection (accuracy ±0.005mm).

    ◆  Surface roughness measurement (profilometer).

    ◆  Helium leak test (leak rate <1×10⁻¹⁰ mbar·L/s).

    ◆  Outgassing test per ASTM E595.

We follow ASTM E595 guidelines – see the standard.

Conclusion

For reliable custom metal parts machining China that meets the strictest vacuum requirements, our CNC workshop delivers precision vacuum chamber components on time and on budget. Request a quote with your 2D/3D drawing today.

Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for custom vacuum chamber flanges?
A: Standard CF/KF flanges (1–50 pieces) ship in 7–10 working days. Complex chambers may take 3–4 weeks including welding and leak testing.

Q2: Do you offer vacuum leak testing before shipping?
A: Yes. We perform helium leak testing on all vacuum components and provide test reports with every order.

Q3: Can you machine parts from customer-supplied materials (e.g., titanium or Inconel)?
A: Absolutely. We accept most aerospace and vacuum-grade alloys. Just provide material certificates.

Q4: What file formats do you accept for quoting?
A: We accept STEP, IGES, DWG, PDF, and even hand sketches with critical dimensions.

Q5: Do you provide electropolishing and passivation services?
A: Yes, both are offered in-house. Electropolishing improves vacuum outgassing performance significantly.
