Introduction: Why Source from China

For mechanical power transmission, worm shafts with hobbed teeth are irreplaceable. When you need reliable, cost-effective production, custom metal parts machining in China offers world-class precision. You can explore our precision machining overview to understand why global OEMs choose Chinese suppliers. For industry standards, refer to the AGMA hobbing specifications.

The Technical Edge of Hobbed Teeth

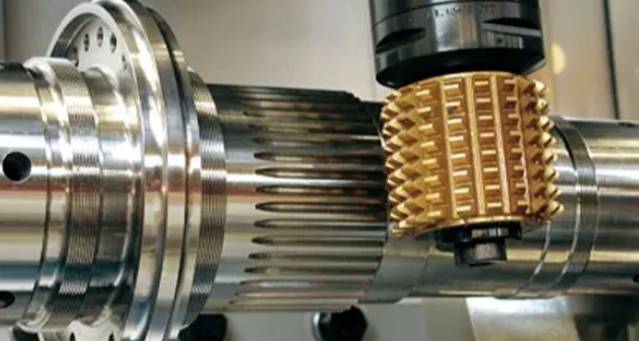

Hobbing generates exact pressure angles and leads, reducing friction in worm gear sets. Compared to other processes, hobbed teeth provide better load distribution and longer life. Chinese workshops use CNC hobbers from brands like Gleason. For a deeper technical comparison, read guide on hobbing vs. shaping. The figure below shows a shaft being processed by gear hobbing.

The Custom Machining Workflow in China

A typical order for custom metal parts machining follows five steps:

    1.  Material selection – 4140, 8620, stainless steel.

    2.  Turning – shaft blanks to exact diameter.

    3.  Hobbing – single or multi‑start worms.

    4.  Heat treatment – case hardening.

    5.  Finishing – grinding and deburring.

All steps are ISO 9001:2015 certified. You can request a custom quote with your drawing. For material properties, hardness database is useful.

Quality Control and Certification

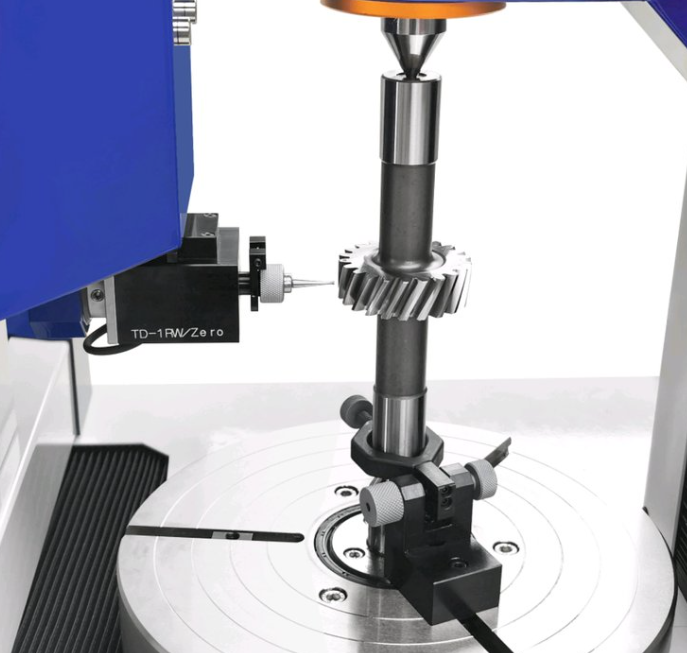

Reputable Chinese shops use CMMs and gear testers. They provide FAI reports and certifications like IATF 16949.  For inspection methods, refer to this article on gear metrology. A sample CMM inspection photo shows tooth profile measurement.

Key Applications

    ●  Electric forklift steering

    ●  Solar tracking actuators

    ●  Elevator drives

    ●  Food conveyor screws

    ●  Robot wrist reducers

Because of the high accuracy of hobbed teeth, these shafts excel in low‑backlash applications.

Conclusion

Engineers seeking custom metal parts machining in China for worm shafts with hobbed teeth benefit from short lead times (3‑5 days) and strict quality control. Always partner with an ISO‑certified shop. You can contact our China engineering team for a free feasibility review.

Frequently Asked Questions

1. What is the maximum length for custom worm shafts machined in China?
Most CNC lathes and hobbers handle shafts up to 2 meters. Longer sizes require special heavy‑duty machines.

2. How does hobbing compare to thread milling for worm teeth?
Hobbing is faster and more consistent for multi‑start worms. Milling may suit very large diameters or low quantities.

3. Can you hob worm shafts after heat treatment?
Typically, hobbing is done before heat treatment (soft hobbing). Some shops offer hard hobbing with CBN tools.

4. What is the typical lead time for a custom order?
From drawing approval to delivery, 3–5 weeks is standard. Expedited 2‑week service may be available for simple designs.

5. Do Chinese machining suppliers accept small batch orders?
Yes, many specialize in low to medium volumes (10–500 pcs). Minimum order quantities can be as low as 1 pieces for prototyping.
