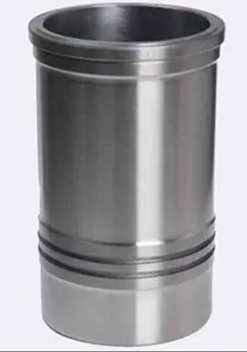

China has become a global hub for custom metal parts machining, especially for critical components like cylinder liners. When engines demand high wear resistance, thermal stability, and extended service life, high-precision solutions with nitriding surface treatment are the answer. This article explores how Chinese machining specialists deliver cylinder liners that meet strict tolerances while enhancing surface hardness through advanced nitriding processes.

Why Choose Custom Metal Parts Machining in China for Cylinder Liners?

Cylinder liners operate under extreme pressure and friction. Standard off-the-shelf parts often fail to match specific engine designs. By opting for custom metal parts machining China, manufacturers gain flexibility in material selection (e.g., grey cast iron, ductile iron, or alloy steel) and dimensional accuracy up to ±0.005 mm. Chinese machine shops utilize 5-axis CNC lathes and honing machines to produce internal diameters, outer contours, and flange geometries tailored to your blueprint.

Furthermore, cost-effectiveness does not mean quality compromise. Many ISO 9001:2015 certified facilities in China offer nitriding surface treatment as an in-house value-added service. For an overview of quality standards, refer to  ISO 9001:2015 requirements for machining.

The Role of High-Precision Machining in Cylinder Liner Performance

Precision begins with the raw material. After casting or forging, the cylinder liner undergoes rough turning, boring, and final honing. A typical high-precision workflow includes:

    ◆  CNC turning to achieve exact outer diameter and shoulder positions.

    ◆  Deep hole boring for uniform wall thickness.

    ◆  Honing to create a cross-hatch pattern that retains oil and reduces piston ring wear.

Every step is verified with coordinate measuring machines (CMM).

Nitriding Surface Treatment: A Game-Changer for Cylinder Liners

While precision machining ensures geometric correctness, nitriding surface treatment adds a metallurgical advantage. This thermochemical process diffuses nitrogen into the steel surface, forming a hard nitride layer (typically 0.1–0.6 mm deep) with hardness up to 1100 HV. Benefits include:

    ◆  Extreme wear resistance – ideal for diesel engines and high-performance motors.

    ◆  Improved fatigue strength – reduces crack initiation.

    ◆  Anti-galling properties – prevents scuffing between liner and piston rings.

    ◆  Low distortion – nitriding occurs at 500–550°C, below the tempering temperature of quenched steel, so the previous precision is preserved.

For technical details on nitriding cycles, check : Sciencedirec of Nitriding.

Quality Assurance and Export Readiness

Reputable Chinese workshops perform 100% dimensional inspection and provide material certificates (EN 10204 3.1). Nitriding depth and case hardness are documented. For global buyers, most suppliers handle export packaging (anti‑rust oil + wooden cases) and shipping to ports like Shanghai or Ningbo.

Conclusion

Custom metal parts machining China for cylinder liners with high-precision solutions and nitriding surface treatment delivers durable, reliable components at competitive costs. By partnering with an ISO‑certified Chinese machine shop, you can achieve tight tolerances, enhanced surface hardness, and longer engine life.

Frequently Asked Questions (FAQ)

Q1: What is the typical tolerance for custom machined cylinder liners from China?
A: Most high‑precision shops achieve IT6 to IT7 tolerances (e.g., ±0.01 mm on inner diameter). For critical dimensions, ±0.005 mm is possible with honing.

Q2: Can nitriding be applied to cast iron cylinder liners?
A: Yes. Grey cast iron and ductile iron respond well to nitriding, though the case hardness may be slightly lower than on alloy steels. It still significantly improves wear resistance.

Q3: What is the minimum order quantity (MOQ) for custom cylinder liners with nitriding?
A: MOQ varies. Many Chinese suppliers accept small batches of 10–50 pieces for prototyping, while larger production runs (500+ pieces) offer the best cost per part.

Q4: How long does the nitriding treatment take?
A: Gas nitriding typically takes 20–60 hours depending on the required case depth. Plasma nitriding is faster (10–30 hours) and produces a more uniform white layer.

Q5: Do you provide third‑party inspection reports?
A: Reputable shops can arrange SGS or TÜV inspection upon request, with additional cost and lead time.
