In modern logistics, warehousing, and recycling, sorting systems rely on precision and speed. Off-the-shelf components often fall short. That is why custom CNC machining parts for sorting systems have become a critical upgrade for operators seeking higher uptime and lower error rates.

Why Standard Parts Fail in Sorting Applications

Sorting lines face vibration, continuous wear, and variable load conditions. Standard cast or stamped parts may crack, lose tolerance, or cause jams. Custom CNC-machined components solve these issues by offering:

    ●  Tighter tolerances (±0.005 mm or better)

    ●  Superior material choices (e.g., 7075-T6 aluminum, 17-4 PH stainless)

    ●  Optimized geometries for weight reduction and strength

For a deeper look at material selection, check our guide to CNC materials for high-wear environments.

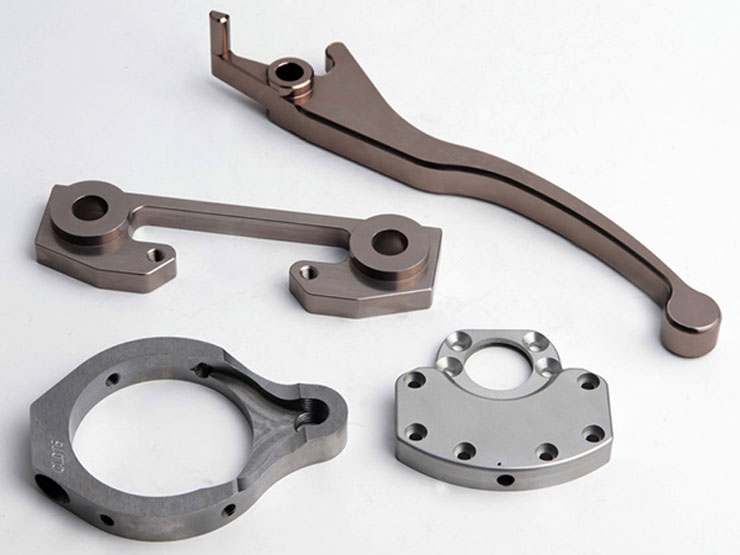

Critical Components We Machine for Sorters

We produce over 200 unique CNC parts for sorting machines, including:

    1. Diverting paddles – wear-resistant profiles with optimized edge angles

    2. Guide rails – custom lengths with integrated mounting slots

    3. Sprockets and pulleys – with balanced tooth profiles for smooth chain operation

    4. Sensor brackets – adjustable designs for photo-eye and RFID mounting

These parts are machined on 5-axis mills and Swiss-type lathes, ensuring consistent quality across batches.

Manufacturing Process & Quality Control

Every custom part follows our strict workflow:

    ●  CAD/CAM programming with toolpath simulation

    ●  In-process probing to correct offsets in real time

    ●  CMM inspection with full dimensional reports

We also apply surface treatments like electropolishing, hard-coat anodizing, and DLC coating based on application needs. All surface finish measurements comply with ASME B46.1 standards, ensuring repeatable roughness values for sliding and sealing interfaces.

For more technical specs, refer to our  finishing options page.

Integration with Existing Systems

Our engineers work with your OEM drawings or scan worn parts using 3D laser metrology. We then reverse-engineer and improve geometry without changing mounting interfaces. This “drop-in” approach reduces field modification costs.

Real-World Case: Recycling Facility Cuts Downtime by 62%

A Midwest U.S. recycling plant processed 800 tons/day of mixed materials. Their existing cast aluminum diverters wore out every 6 weeks, causing 4 hours of unscheduled downtime each replacement.

We redesigned the diverter using solid 7075-T6 billet with a hard-anodized surface. Key results:

    ●  Part life extended from 6 weeks to 14 months

    ●  Downtime reduced from 24 hours/year to under 9 hours

    ●  Sorting accuracy improved from 94.2% to 98.7%

“The CNC-machined parts paid for themselves in 3 months,” said the plant maintenance manager.

Benchmarking against industry performance metrics published by the Material Handling Institute (MHI), our solution outperformed average wear-life expectations by over 300%, directly contributing to the facility’s overall equipment effectiveness (OEE) gains.

Conclusion

Custom CNC machining offers sorting system operators a clear ROI through longer part life, lower friction, and consistent accuracy. Whether you run parcel sorters, food-grade conveyors, or e-waste shredders, bespoke machined components can be designed to outperform any generic alternative.

Frequently Asked Questions

Q1: What is the typical lead time for custom CNC sorting parts?
Standard lead time is 10–15 business days for prototypes and 3–4 weeks for production runs, depending on complexity and quantity.

Q2: How do I know which material is best for my sorter part?
We recommend 7075-T6 for lightweight high-stress parts, 17-4 PH for corrosive environments, and 4140 steel for heavy-impact zones. Our engineers can review your duty cycle and suggest the optimal alloy.

Q3: Can you machine parts with complex internal cooling channels?
Yes. We use 5-axis drilling and EDM for internal passages, often required for heat-generating diverter blocks.

Q4: Do you provide samples before full production?
Absolutely. First-article inspection (FAI) with CMM report is standard. We also offer 3D scanning verification against your original part.

Q5: Are your CNC parts compatible with any sorting system brand?
Yes. We have reverse-engineered components for BEUMER, Vanderlande, Honeywell, and many proprietary systems. We just need a sample or drawing.

Q6: What surface finishes reduce friction on sliding guides?
Hard-coat anodizing (Type III) and DLC (diamond-like carbon) coatings are most effective. Both are available in our facility.
